Electric forklift truck 4.0 - 5.0t

2846 - 7500 mm
4000 - 5000 kg

Versatile for indoor and outdoor use.
High level of safety even at maximum driving dynamics.
Customisable to individual customer requirements.
Extremely powerful and efficient.
Heavy-duty hydraulic block for efficient work with large and heavy attachments.

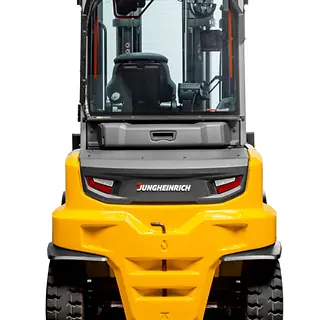

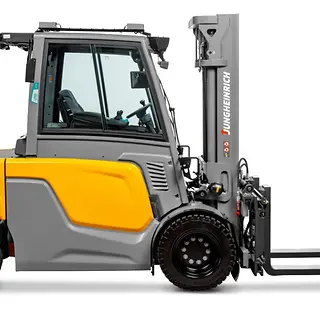

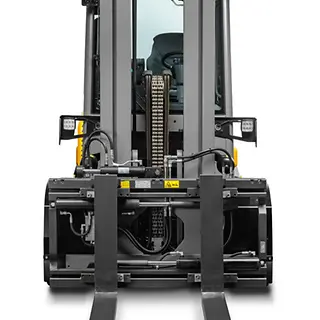

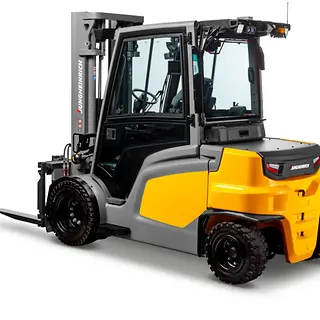

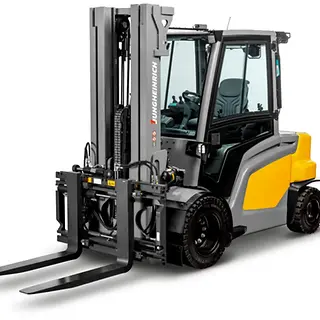

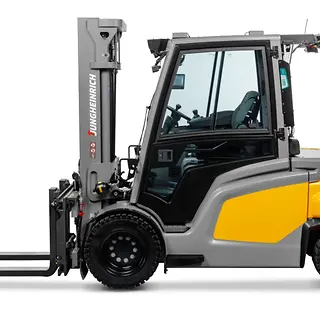

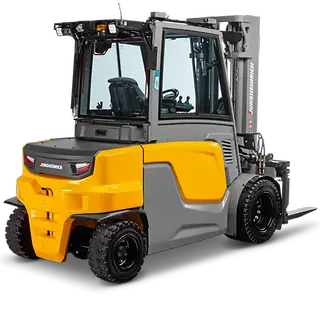

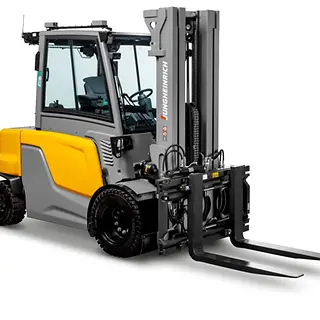

EFG 540k-S50

Whether in one-shift or three-shift operation, whether for automotive suppliers, the beverage industry or wholesale and retail, our Series 5 electric four-wheel counterbalance forklift trucks handle the most demanding jobs with heavy loads – both indoors and outdoors. With a capacity of up to 5,000 kg and the option of using heavy attachments, they are ideally suited for in-house goods transport as well as for efficient side loading and unloading of HGVs. Thanks to maximum legroom, an ergonomically sophisticated operator position with excellent visibility and a new sound module, working with the Series 5 counterbalance forklift trucks is a pleasure, and offers maximum safety.

Li-Ion

No worries. No compromise.

The Jungheinrich Li-ion Guarantee Plus offers up to 8 years of reliable performance for our high-quality lithium-ion batteries. Confident in their high performance and long service life, we also guarantee a hassle-free switch back to your original technology within 6 months of delivery.

Benefits

Connected Trucks

Use your vehicles’ data to save time, energy, and costs, and to increase efficiency. With our telematics box (installed at the factory), you’ll receive a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Improved energy efficiency

Impressive throughput.
Energy recovery through regenerative braking.
Highly efficient synchronous reluctance lift motor with permanent magnets.
High-performance travel and lift speeds.
efficiencyPLUS performance package for energy-efficient truck use.
drive&liftPLUS performance package with increased travel and lift speeds.
Available with lithium-ion or lead-acid technology.
Increase in oil flow volume by 33% for large attachments.

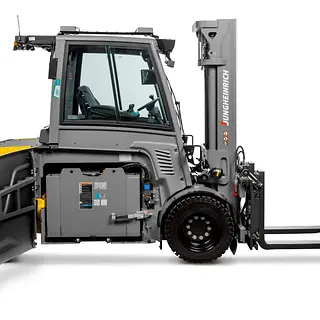

Advanced lithium-ion technology

High availability thanks to short charging times.
Maintenance-free and up to three times longer service life in comparison with lead-acid batteries.
Ideally suited for multi-shift operation thanks to excellent booster and rapid charging capabilities.
Enables 10 to 20% lower CO2 emissions over the entire life cycle.
Up to 20% lower energy consumption during charging compared to lead-acid batteries – thanks to the higher overall efficiency of the system.

Maximum safety in operation

Outstanding visibility thanks to narrower B-pillars and a strut-free panoramic roof.
curveCONTROL reduces the travel speed when cornering, depending on the load.
No uncontrolled rolling back on ramps or inclines thanks to the automatic parking brake.

Optional operator assistance systems and safety concepts

Safety inspection of the truck before operation by means of a pre-operation check.
accessCONTROL: access control system which only unlocks the truck once a sequence of safety checks has been completed: 1. Valid access code, 2. Seat switch closed, 3. Seat belt fastened.
driveCONTROL: Travel speed control that automatically reduces speed both when cornering (curveCONTROL) and from a defined lift height.
liftCONTROL: Lift speed control, which in addition to reducing the travel speed from a defined lift height also reduces the tilt speed of the mast and displays the tilt angle in the main display.
Assistance systems: zoneCONTROL (stationary and mobile zone) and addedVIEW (reversing camera, fork camera and person detection camera).

Individually adjustable operating concept

Selection of 5 freely configurable travel programs.
Stepless single-point adjustment of armrest and steering column in two axial directions.
A choice of 3 different operating controls.
Adjustable lever and axle assignment of the controls.
Single or double pedal operation.

Ergonomic workplace

Low, highlighted entry step with level footwell.
Slim steering column for maximum knee and legroom.
Full-colour TFT display with self-explanatory user interface.
Compact mast profiles with excellent visibility.
New glass door concept and narrower B-pillar.
Operator-oriented storage concept for intuitive operation.
Large, adjustable armrest with different upholstery fabrics and spacious storage compartment.
External power supply via optional USB ports in the armrest and/or the side storage.
Reduced vibrations and lower noise exposure for the operator thanks to optimised decoupling of the cabin.


Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EFG 540k	4 000 kg	7 500 mm	20 km/h	3 834 mm	80 V
EFG 540	4 000 kg	7 500 mm	20 km/h	3 978 mm	80 V
EFG 545k	4 500 kg	7 500 mm	20 km/h	3 834 mm	80 V
EFG 545	4 500 kg	7 500 mm	20 km/h	3 978 mm	80 V

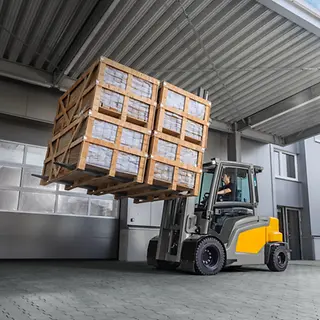

EFG 550	4 990 kg	7 500 mm	20 km/h	3 978 mm	80 V
EFG S50	5 000 kg	7 500 mm	18 km/h	4 132 mm	80 V
