Mobile robot load towing indoor 5,000 kg

Tow tractors for the automation of tow trains in indoor applications.
Dual-use capability for maximum flexibility in use.
Contour-based navigation for efficient automated processes.
Seamless integration into VDA 5050-controlled fleets.
Comprehensive safety systems for maximum protection.

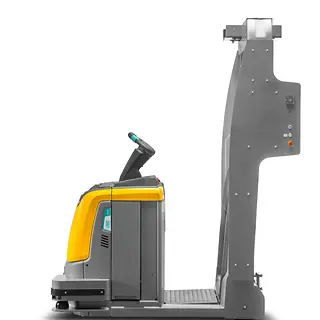

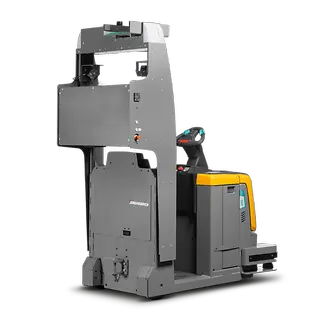

EZS 350a

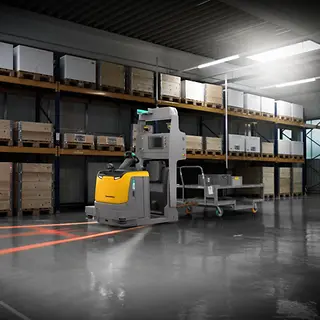

Whether in production supply or for linking storage areas over greater distances: Our versatile and robust EZS 350a automatic tow tractors are ideally suited to efficiently towing loads in tow trains with a weight of up to 5,000 kg. The mobile robot reliably and safely handles routine tasks, impressing with precise navigation technology and comprehensive safety systems. In addition to the option of using the EZS 350a in manual and automated operation, a wide selection of couplings offers high flexibility in application. Personnel and machine protection scanners ensure safety, while the intuitive touch panel enables user-friendly operation.

Li-Ion

No worries. No compromise.

The Jungheinrich Li-ion Guarantee Plus offers up to 8 years of reliable performance for our high-quality lithium-ion batteries. Confident in their high performance and long service life, we also guarantee a hassle-free switch back to your original technology within 6 months of delivery.

Features

Flexible operation

Dual-use capability for maximum flexibility in use.

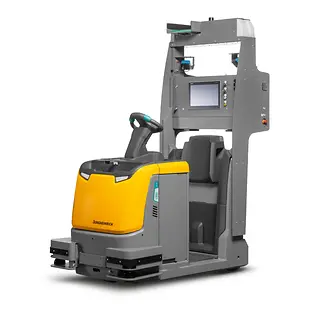

Industrial PC with integrated touch screen for intuitive, user-friendly operation.
For combined use in mixed operation; fully manual operation is also possible.

Maximum availability

High-performance lithium-ion battery with automatic booster charging.
A warranty period of up to 8 years on the battery for high investment security.

Sustainable energy management

Autonomous travel to automatic charging stations when the battery level is low.
Setting minimum and maximum values for the battery charge level for the optimisation of battery life and energy efficiency.
Pre-defined break or shift charging times.

Intelligent safety systems

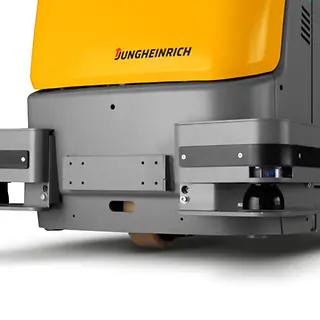

2D safety laser and optional 3D machine protection scanner.
Scanning of obstacles when cornering.
Emergency disconnect on the truck.

Contour-based navigation

Using a high-resolution LiDAR sensor, the EZS 350a generates a digital navigation map from the natural contours of the surroundings.
Real-time updating of the digital map for safe navigation, even in dynamic environments.
Navigation without artificial landmarks eliminates the need for structural modifications to the warehouse.

Safe man / machine collaboration

Visualisation providing a quick overview of the most important truck data and current transport orders.
Clear status displays minimise the need for manual intervention.

Established standard truck used as base

Benefit from the standard controls of the base vehicle for easy manual operation.
Versatile solutions, adapted to your load or trailer.
Various couplings available. Also suitable for automatic decoupling.

Wide range of applications

Thanks to the VDA 5050 standard, it can be used as a stand-alone solution or integrated into existing fleets.

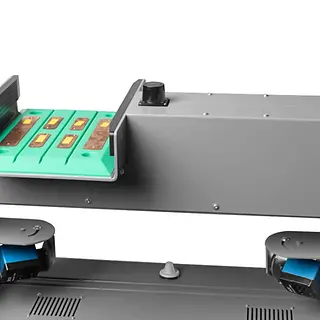

Wide selection of couplings from drawbar couplings to automated couplings for maximum flexibility.

Model Overview

Model	Towing capacity load	Travel speed	Overall length	Battery voltage
EZS 350a	5 000 kg	12,5 km/h	1 962 mm	24 V
